Eaton UPS

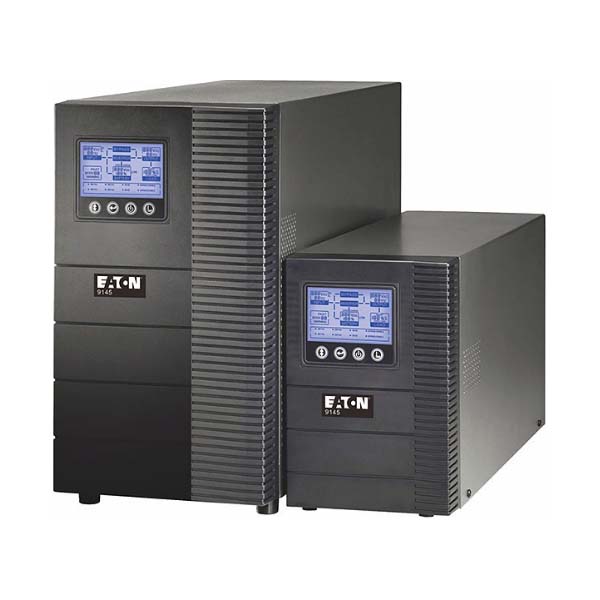

Eaton 9145 UPS - Technical Specifications


Product Snapshot
Power Rating 1 kVA - 3 kVA at 0.8pf 6 kVA - 20 kVA at 0.9pf
Voltage 220V
Frequency 50/60 Hz (auto-sensing)
Configuration Tower
Product Series Eaton
Eaton 9145 UPS - Features
Robust design and on-line double conversion topology assures maximum reliability
Wide input-voltage range appropriate for the harshest electrical environments
Automatic bypass for fault-tolerance
Cold start on battery power enables portability
Adjustable battery quantity optimises sizing
Intuitive front-panel LCD user interface for consistent status indication
Inbuilt RS-232, USB & Intelligent Slot communication ports
WINPOWER software suite bundled

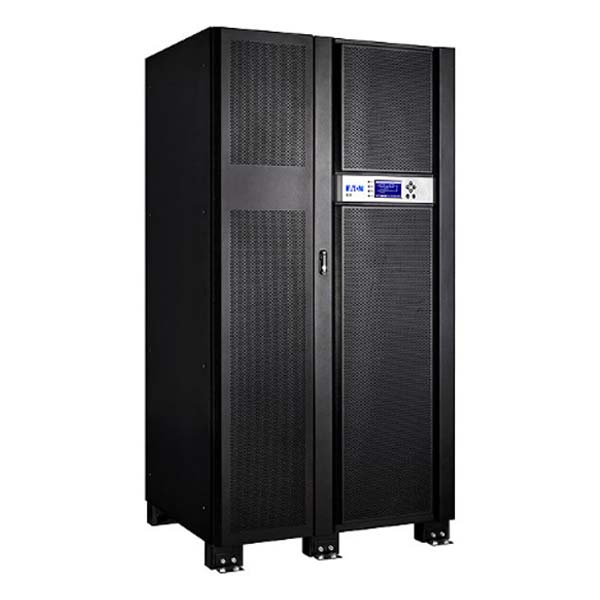

Eaton 93E - Technical Specifications


Product Snapshot
Power Rating 15-550 kVA
Voltage 230/400 4W
Frequency 50/60 Hz
Configuration Tower
Eaton 93E - Features
Lower operating costs through 98.5% efficiency
Patented Eaton Hot Sync® technology makes it possible to parallel up to four UPSs to increase availability or add capacity
Up to 30% smaller footprint than similar competitive solutions
Large LCD graphically displays UPS status and offers easy access to measurements, controls and settings
Intelligent Power Manager Software monitors and manages multiple power devices across your network
Advanced Battery Management enhances battery life, reliability and predictability

5EL UPS - Technical Specifications


Product Snapshot
Power Rating 1000-2000 VA
Voltage 230 Vac
Frequency 50/60 Hz (auto-sensing)
Configuration Tower
5EL UPS - Features
Line-Interactive conversion topology & robust design assures maximum reliability
Double Boost & Buck AVR provides wide input voltage and frequency ranges (up to 140-300V & >40Hz) for wider suitability
India outlets for easy equipment connection
DC Start function for starting up the system without AC power
Generator input support to extend back up time beyond battery capacity
Auto restart for peace of mind

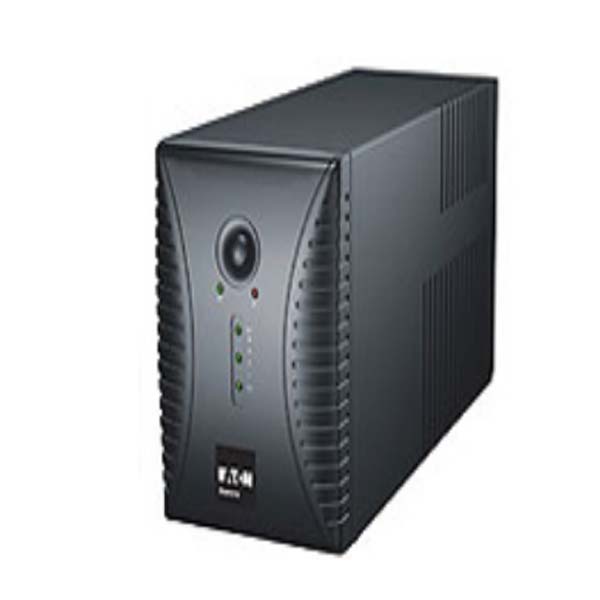

Aurora UPS - Technical Specifications


Product Snapshot
Power Rating 600-1000 VA
Voltage 230 Vac
Frequency 50 Hz
Configuration Tower
Aurora UPS - Features
Double Boost & Buck AVR provides wide input voltage and frequency ranges (up to 140-300V & >40Hz)
Fixed input cord for easy installation and greater security
India outlets for easy equipment connection
Small footprint for easy installation on or under a desk
Green Power function prevents battery discharge when no load is connected, saving the battery from deep discharge damage
Overload Protection alerts user and protects UPS from damage
