Salient Features

  • Latest state of art current mode PWM control
  • MOSFET and UFR diodes - high reliability and efficiency
  • SMPS technology – compact, light weight, better line and load regulation (< +/- 1%)
  • Doubles life of Battery due to good regulation and very low DC ripple
  • DC ripple < 100mVp-p
  • Input Power Factor < 0.98
  • SMPS operates on wide input voltages (180 to 270VAC)
  • In-built EMI and RFI filter
  • Protection against output short circuit, overload and over voltage
  • Input/Output isolation at 2 KV

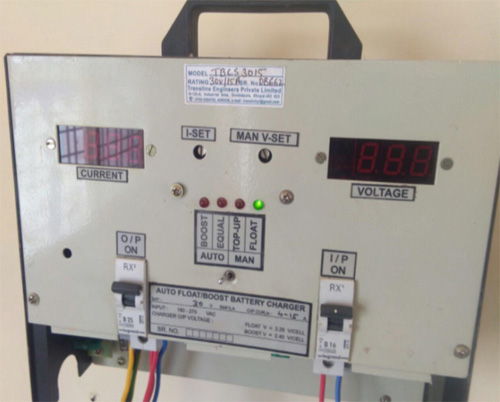

  • AUTO/MANUAL selection; FLOAT/BOOST LED indication.
  • SMPS with precise CVCC characteristic used
  • Pots for setting FLOAT & BOOST voltages; max charging current internally limited
  • User can precisely set FLOAT & BOOST voltages depeding on type of battery – Lead acid, SMF, Tubular, Ni-Cd, etc.

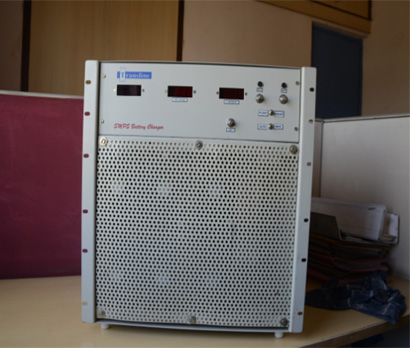

  • Standalone model has digital meters for battery voltage/current

Standard models

*250W Model Std. ratings: 12V/20A, 30V/ 8A, 24V/10A, 48V/5A, 110V/2A
*500W Model Std. ratings : 12V/40A, 30V/16A, 24V/20A, 48V/10A, 110V/4A
*1000W Model Std. ratings: : 12V/80A, 24V/40A, 48V/20A, 110V/8A, 220V/ 4A
*1500W Model Std. ratings: : 24V/60A, 48V/30A, 110V/12A, 220V/ 6A
*2000W Model Std. ratings: 24V/80A, 48V/40A, 110V/16A, 220V/ 8A
*3000W Model Std. ratings: 24V/120A, 48V/60A, 110V/25A, 220V/12.5A

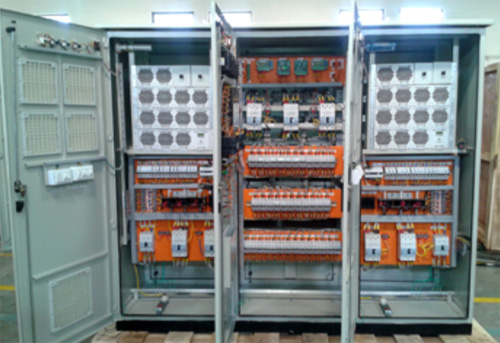

  • We have manufacturing capacity of more than 15000W in modular technology with N+1 redundancy as well
